The block "Model" gives, based on the actual topology of the inverter (s_A, s_B, s_C), on the value of the DC voltage (U) and on the phase currents (i_sA, i_sB, i_sC):

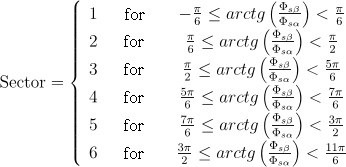

• the components F_sa and F_sb and further, the sector where the stator flux phasor is



• the modulus of the stator flux and
• the electromagnetic torque developed by the motor.
