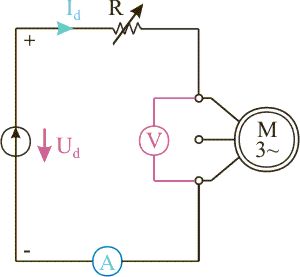

Two stator phases are connected to a DC source, by the way of a variable resistance R (Figure 1). For more values of the resistance, the voltage and the current are measured, taking care to not exceed the rated phase current.
Taking into account the stator connection, for the stator phase resistance, will be considered the average of the determined values> It results:
R1 = 1,8 W.
