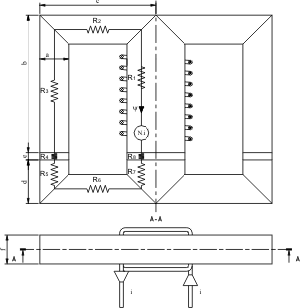

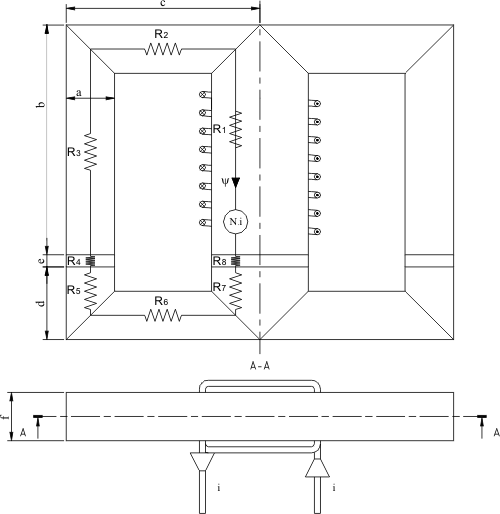

| Considering the symmetry of the device, we can study only one half of the magnetic circuit (Figure 5). The fluxes that flow through the two lateral columns are equal, each being half of the flux that flows through the central column, and the flux which flows half of this central column's section. (Figure 5). |
 |
