2. An example of magnetic circuit

Lecture's plan

Introduction

  1. The importance of the magnetic circuit notion
  2. An example of magnetic circuit
  3. Defining the integration contour for the application of Ampère's theorem
  4. The application of Ampère's theorem - emphasizing the magnetic circuit
  5. Hopkinson's law
  6. Analogy between magnetic circuits/electrical circuits
  7. Application for modelling an electromechanical converter
  8. Defining the equivalent magnetic circuit
  9. The reduction of the equivalent magnetic circuit
  10. Flux-current relation
  11. The calculus of the magnetic co-energy and attraction force

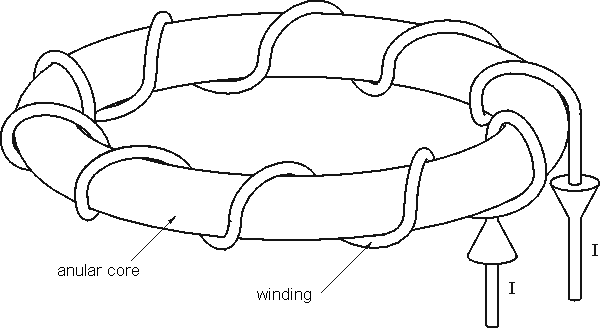

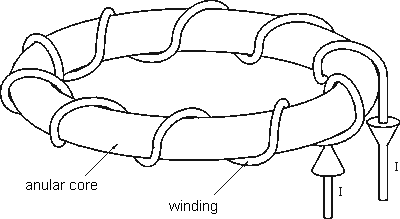

To introduce the notion of magetic circuit, we will consider a reel with N turns reeled up round an annular core. (Figure 1).
